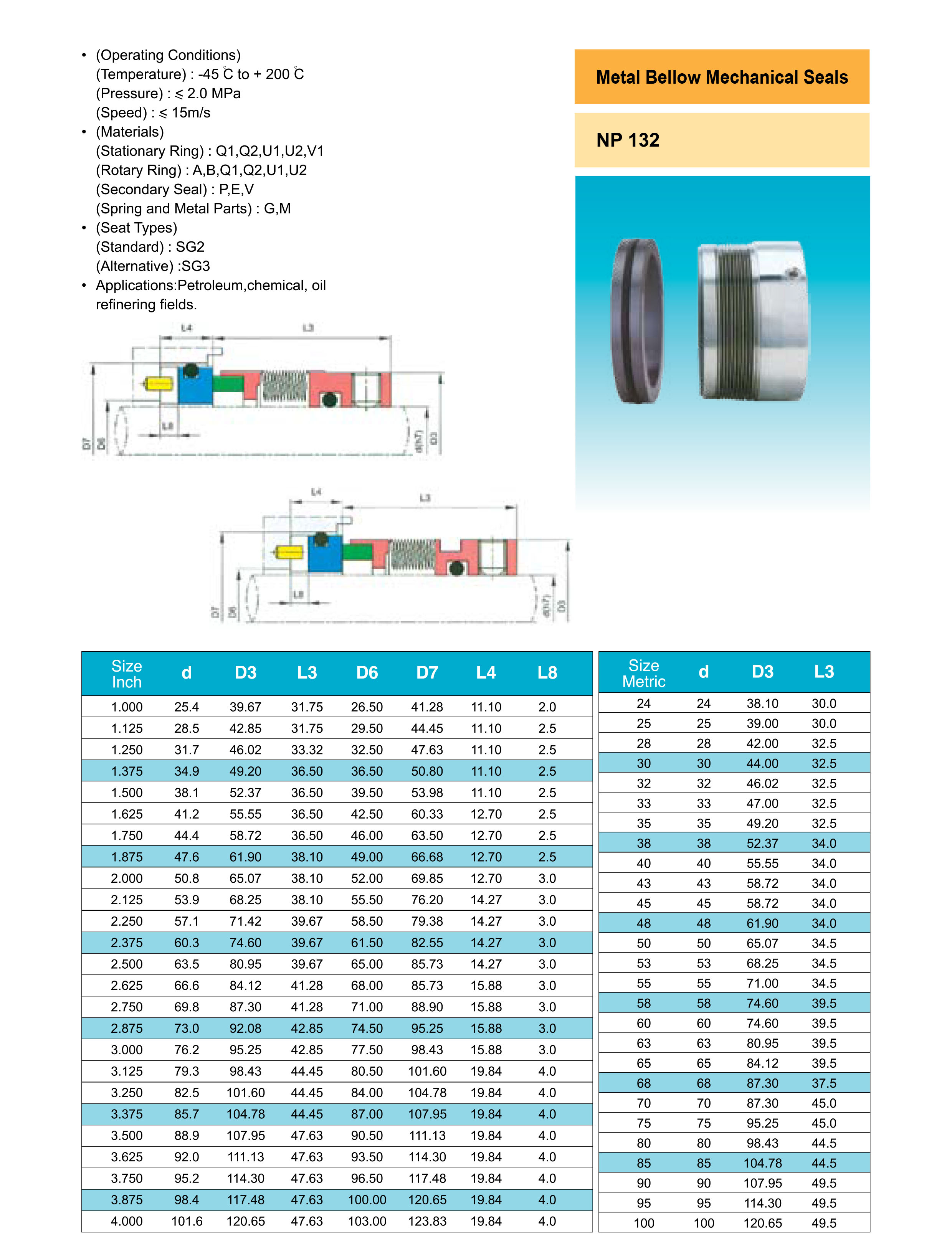

NP 132

Attribute:

Share

  (Operating Conditions)
(Temperature) : 45 'C to + 200 C
(Pressure) :< 2.0 MPa
(Speed):< 15m/s

  (Materials)
(Stationary Ring) : Q1,Q2,U1,U2,V1
(Rotary Ring) : A,B,Q1,Q2,U1,U2
(Secondary Seal) : P,E,V
(Spring and Metal Parts) : G,M

 (Seat Types)
(Standard) : SG2

 (Alternative) : SG3

  Applications:Petroleum,chemical, oil refinering fields.
